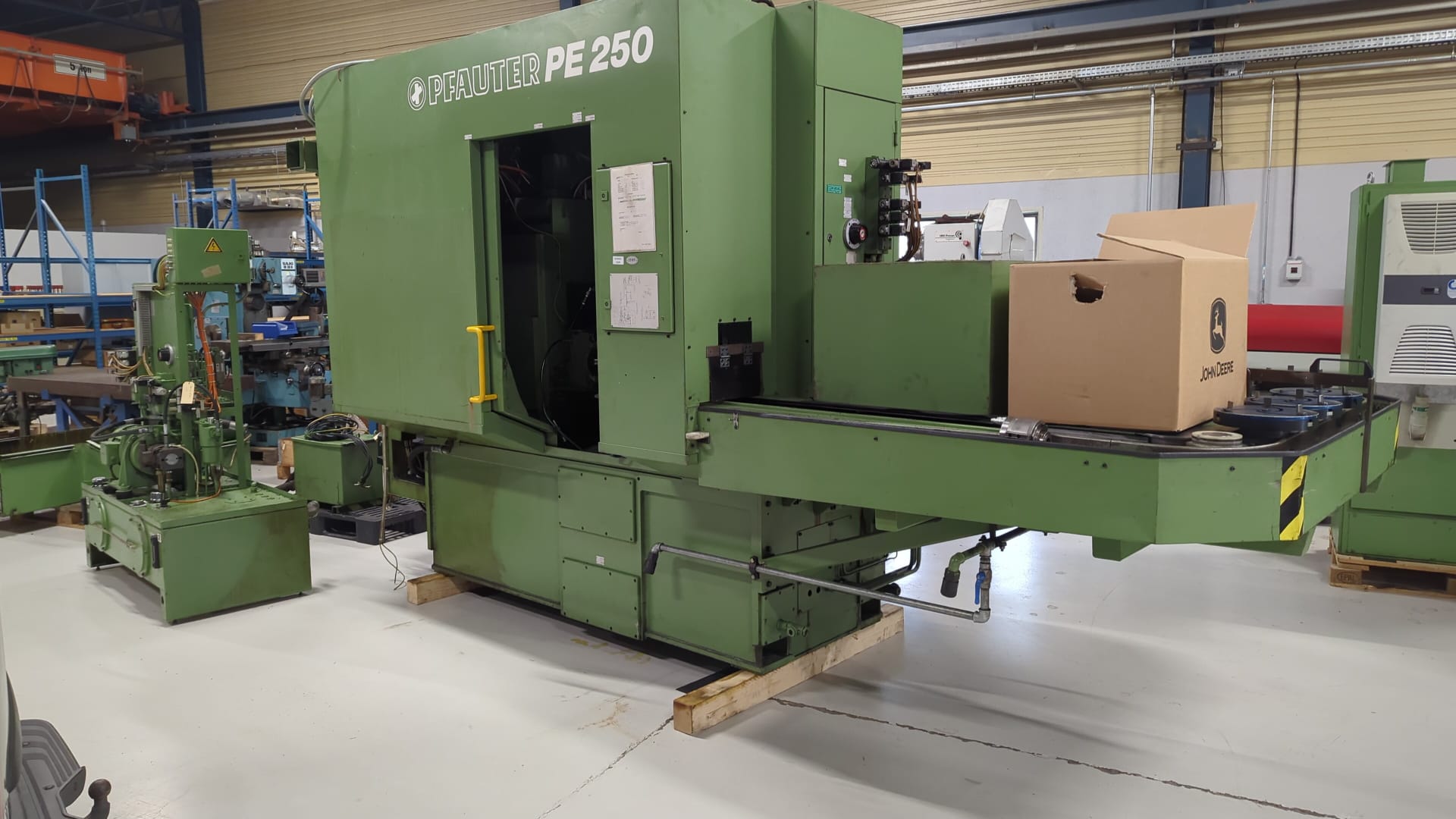

Pfauter PE 250 CNC Gear Hobbing Machine

Technical Specification

Max Wheel Diameter	250mm
Diameter Of Milling Arbor	32mm
Speeds Of Tool	90 – 900 U/min
Feeds	5000mm/min x/y/z
Total Power Requirement	52kW
Weight Of The Machine Capacity	9,50t
Dimensions Of The Machine Capacity	6,720 x 5,975 x 3,998m
Max Module	5
Radial Slide Travel	210mm
Axial Travel	200mm
Tangential Travel Max	200mm
Control	SINUMERIK 840 C
Table Diameter	300mm
Table Hole	80mm
Taper	SK 40
